2022 Puma STS Front Graph Layout Pictures

[jpeloquin34]

Does anyone have pictures or aftermarket ideas/vendors on the best way to mount larger graphs(15″) on the front of the new Puma STS?

[Bass Cat Boats]

There aren’t many Puma STS models in the field and even less with 15” graphs.

[jpeloquin34]

Bass Cat Boats, can you tell me what this is or what it’s supposed to do?  This is on a 2022 Puma STS that I took delivery of Tuesday, May 10, 2022 from Real Deal Marine.

[Bass Cat Boats]

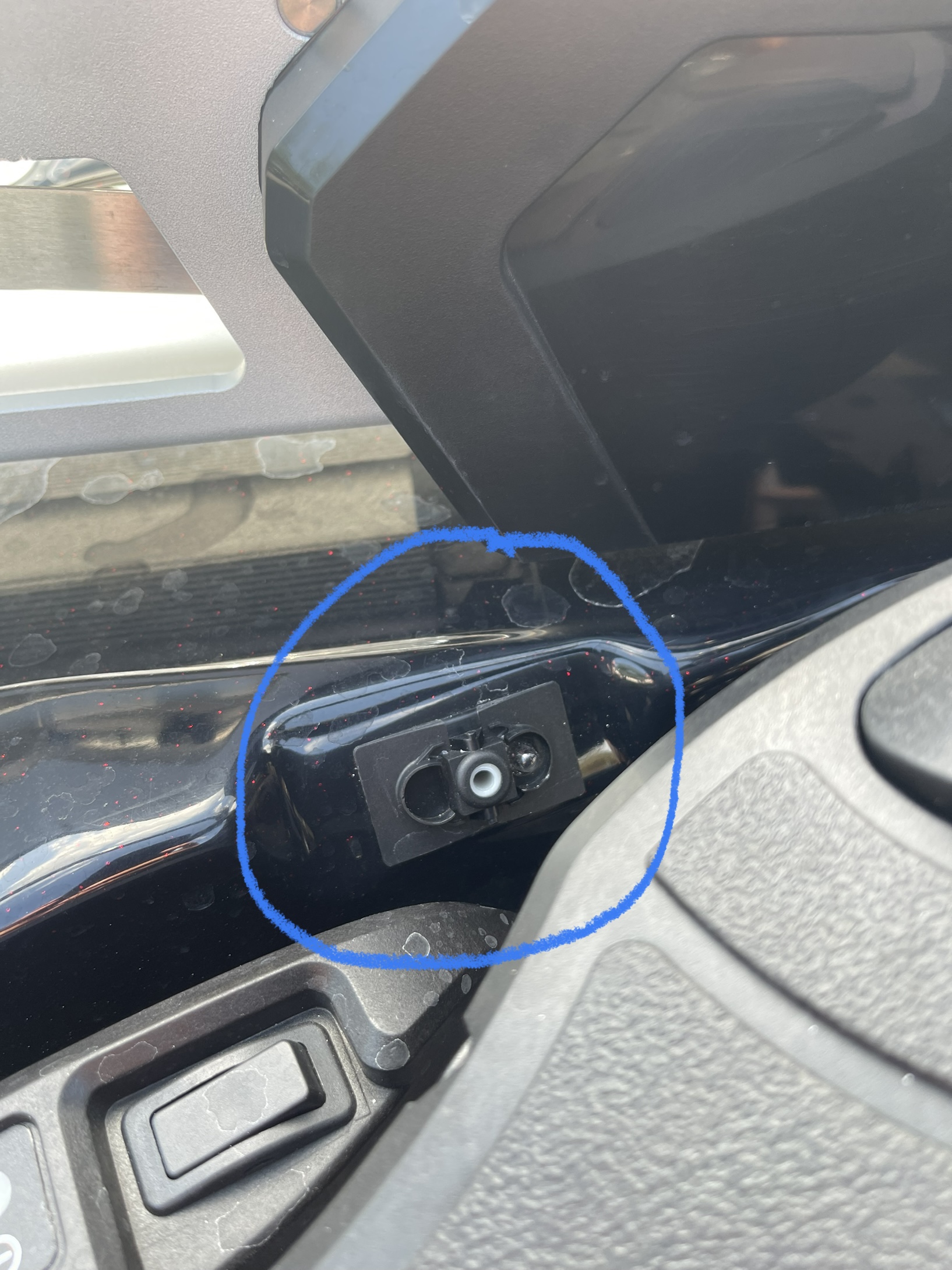

That is a switch for the live units, and the top hat is missing. Likely got snagged by something as they are usually pretty solid.

[Ricochet15]

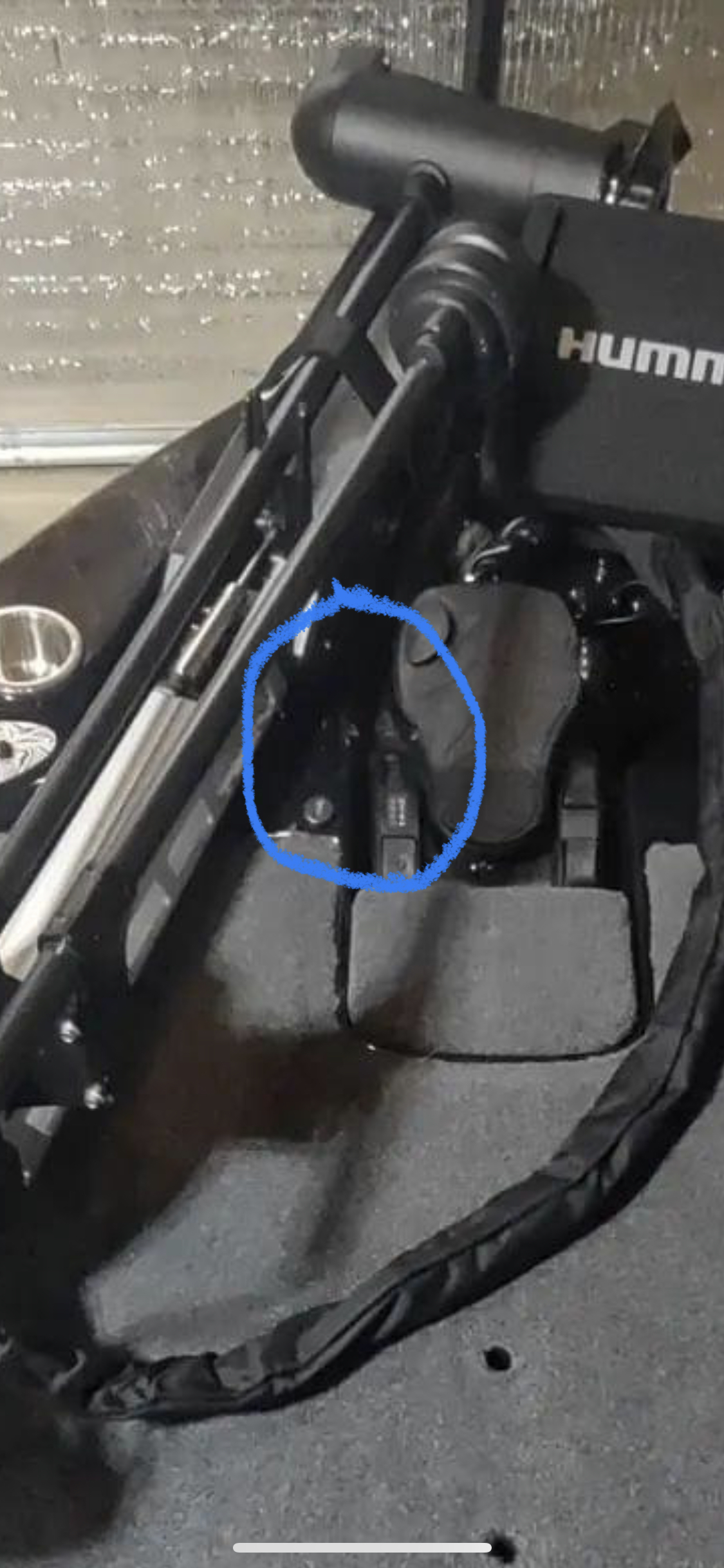

I believe that is the accessory switch for Active Target/Livescope and it is broken.

[jpeloquin34]

Bass Cat Boats, how do I get this resolved or fixed?  I just took delivery of the boat last Tuesday, May 10, 2022.  Would someone from Bass Cat be willing to reach out to me to get it resolved or do I have to bring back to the dealership which is 2 hours away?

[jpeloquin34]

Bass Cat Boats, this is a picture of the bow before I took delivery of the boat as it is sitting on their showroom floor, is it possible that this piece was broke off at the factory?  I’m just looking for a little assistance on how to go about getting it replaced.  Fir the record, this boat is absolutely amazing and the attention to delivery has far exceeded my expectations!!  Job well done!!  Please feel free to reach out to me by cell if you’d like.  3373041263



[Bass Cat Boats]

The switch hat has one stem and it just snaps in place. They have to be wedged off and it was snagged somehow.

Just contact service inside the factory and ask them to mail one to your home. It’s honestly less than a 5 second job to actually replace.

[jpeloquin34]

How do I contact service inside the factory?  Can you supply me with a phone number?

[Bass Cat Boats]

It’s always bottom of our sites.
870-481-5135

[DennisKM]

Very good question.  I have two 12″ graphs up front (one Humminbird and a Garmin).  I mounted my Humminbird for my 360 at a bit of an angle to fit my Ultrex.  The Garmin is now going on a 3″ riser on the top tier of the bow area (at the same angle) to miss the trolling motor blades and top of the Humminbird unit below.  I am finishing up the rigging next week since I had to wait on the riser.  I  have some mock up pics but when I am done with the full install I will post pics.
